This is a nickel-plated brass 2-way straight valve for open/close control of the air flow. It has sizes range from 6 to 12 mm push-in fittings on both sides. It has NBR seals that make it suitable for applications within a temperature range from 0 to 60 °C. The operating pressure range is -99 to 0.9 mpa, making it suitable for vacuums. Use the quarter-turn handle to open or close the valve.

Push-in fittings are ideal to create fast and reliable connections for pneumatic hoses. All connections have push-in port. The body is made of PBT, The connection ports are made of POM. The seal material is NBR.

Pros

• Simple design

• Suitable for vacuum applications

• Equipped with easy to connect push-in fittings

Cons

• Dust could damage the pneumatic system if vacuum is applied without a filter on the inlet side

Pros

• Quick and easy installation and release of pneumatic tubing

• It can be used for vacuum applications

• This fitting can be used with hoses of imperial size

• Suitable for use with oiled and unoiled compressed air

Why choose us?

1. Adhere to the basis of "Do not produce defects, and do not pass down defects to the following process" in each process, we have been committed to the establishment of defect-free process conditions and the clarification of criteria for product quality judgment.

2. It is necessary to clarify thoroughly the mechanism that generates defects so as "Not to cause defects," and promote measurement and inspection technology development to detect defects so as "Not to send defects to the following process"

with close cooperation between the departments: development & design, production engineering, and manufacturing.

3. We evaluate the quality activities of the departments based on customers' assessment and quality cost so as to improve weaknesses of the quality controlOver the last 10 years, we have developed a comprehensive product line utilizing advanced automated production equipment, and the utmost strict professional testing standards.

4. We are an intelligent company, We have OA system, ERP system, PLM syste , that can help us to management, control quality efficiently.

5. We pride ourselves on customer service and quality products.

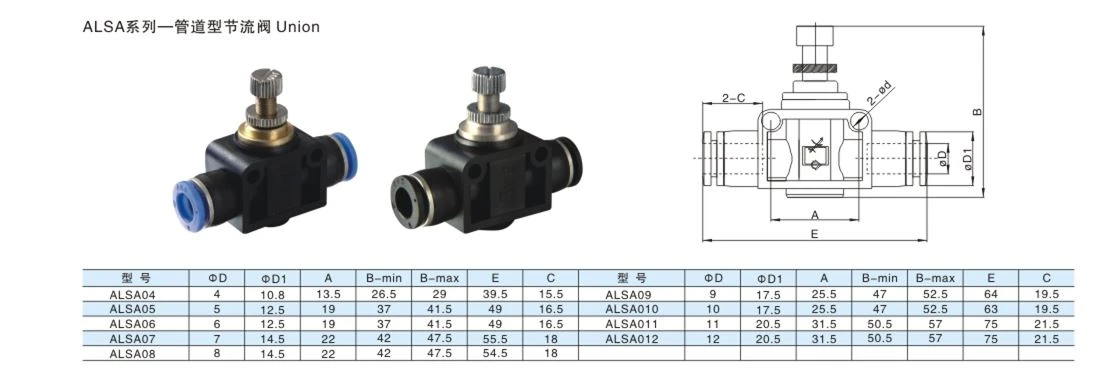

Specification

Material: PBT

Seal material: NBR (nitrile rubber)

Push-in connection: 4mm 6mm 8mm 10mm 12mm 14mm 16mm

Min pressure (MPA): -99.99

Fitting features: Vacuum

Connection type: Push-in

Max temperature (°C): 60

Min temperature (°C): 0

Max pressure (MPA): 0.9
