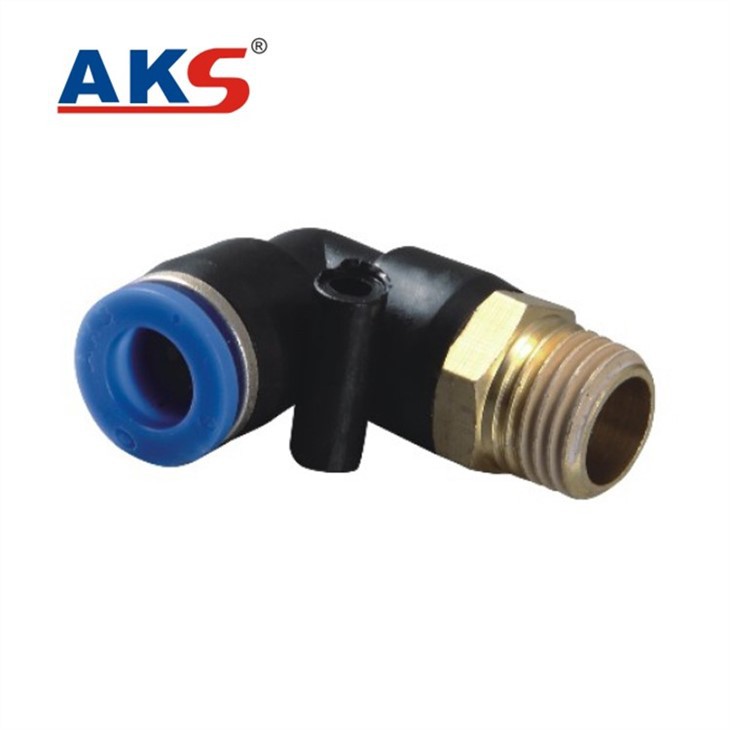

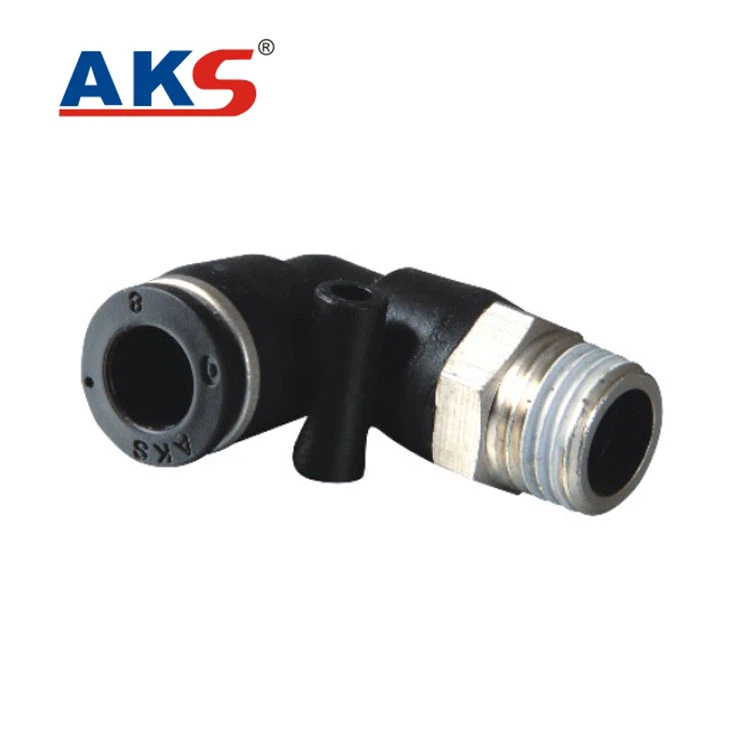

Apl Male Elbow Push In Fittings

This is a 2 connection elbow push-in fitting

Push-in fittings are ideal to create fast and reliable connections for pneumatic hoses.

Connection 1 is a 4-16 mm push-in port. Connection 2 has inch male threads. The male thread connection has PTFE-coating. The body is made of PBT. The connection ports are made of nickel plated brass and PBT.

The seal material is NBR. The operating pressure range is -99.99 to 0.9 mpa , max pressure 1.32mpa, making it suitable for vacuums. The fitting is suitable for temperatures from 0 to 60 °C. The push-in fitting is easily installed by pushing the pneumatic tube against the release ring-end of the fitting until it stops, and the internal claw secures it into place. It is easily uninstalled by pushing the release ring inward towards the fitting and pulling the tubing back.

Pros

• Quick and easy installation and release of pneumatic tubing

• The male thread connection is PTFE-coated

• It can be used for vacuum applications

• The threaded connection is rotatable

• This push-in fitting has an outer hexagon for mounting

• This fitting can be used with hoses of imperial size

• Suitable for use with oiled and unoiled compressed air

Why choose us?

1. We are manufacturer for over 10 years. Our company built in 2007, develop very fast during past 10 years. With over 10,000 items, and more added monthly, we have been designing and making our own pneumatic components centered around off-the-shelf OEM pneumatic components and seals. We create new concept to make diversified male pneumatic components to support customers' needs.

2. Furthermore, our humanized design around user experience.

3. We ever design & OEM for many customers.

4. Independent R & D capability for the complicated ECU.

5. We use imported qualified material, precised technology, advanced plating treatment while producing terminals.

6. Most of our customers provide us with product or packaging specifications right on their design prints. We would be happy to work with you to fulfill your requirements.

7. Since we 100% test and inspect all harnesses, we can easily provide you with serial number tracking, or specific labeling requirements.

8. With our dedicated inspection equipment, we will gladly provide you a report on each of your harnesses.

9. With many years experience shipping to the US, Canada, and Mexico in addition to all of South America, Europe, Asia, and Australia, KINKONG has you covered!

10. Since it is our policy to 100% inspect all products that leave our facility, we can guarantee with absolute certainty that the product is functionally 100% accurate before it leaves our facility.
