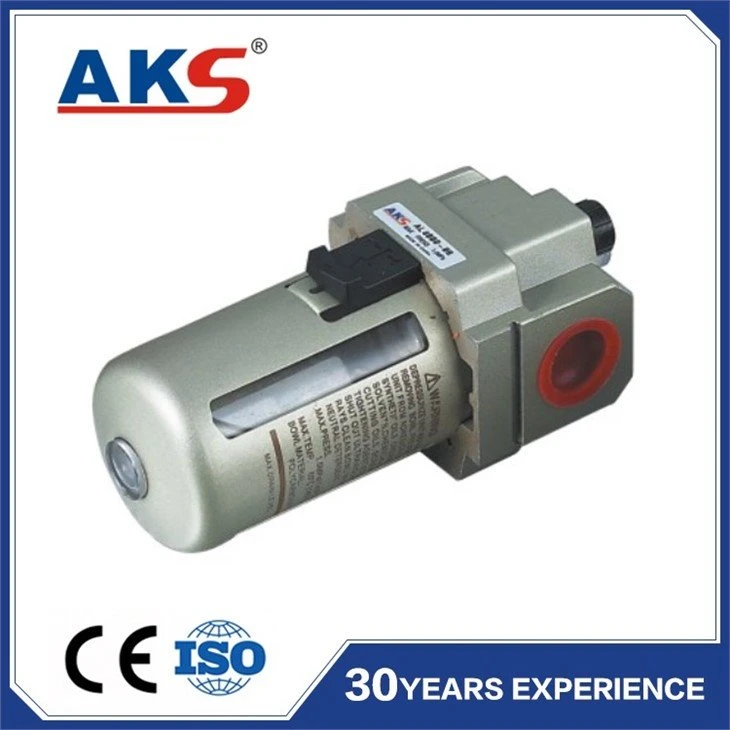

The lubricator introduces oil into the pneumatic air to reduce internal friction for pneumatic components. Only use a lubricator if downstream equipment requires lubrication. The recommended lubricating oil type is ISO-VG32 turbine oil. Verify the type and quantity of oil needed for your component. This model has G 1/4" 3/8" 1/2" 3/4" 1" ports. The max input pressure is 10 bar and the temperature range is between 5 and 60 °C. The lubricator requires a minimal flow rate of 200 l/min and can hold 180 cm3 of oil. The housing material is made out of aluminium and the lubricator has a bowl made of polycarbonate.

Pros

• Lubricates the air with oil to prevent damage down-line reducing maintenance cost. Only select a lubricator when down-stream equipment requires lubrication

Cons

• Most modern pneumatic systems don't require extra lubrication. Verify if your components require lubrication

Specification

Connection size: G 1/4" 3/8" 1/2" 3/4" 1"

Material: Aluminium

Min temperature (°C): 5

Max temperature (°C): 60

Lubricating oil capacity (cm³): 180

Self relieving: No

With mounting bracket: No

With backflow: No

With pressure gauge: No
